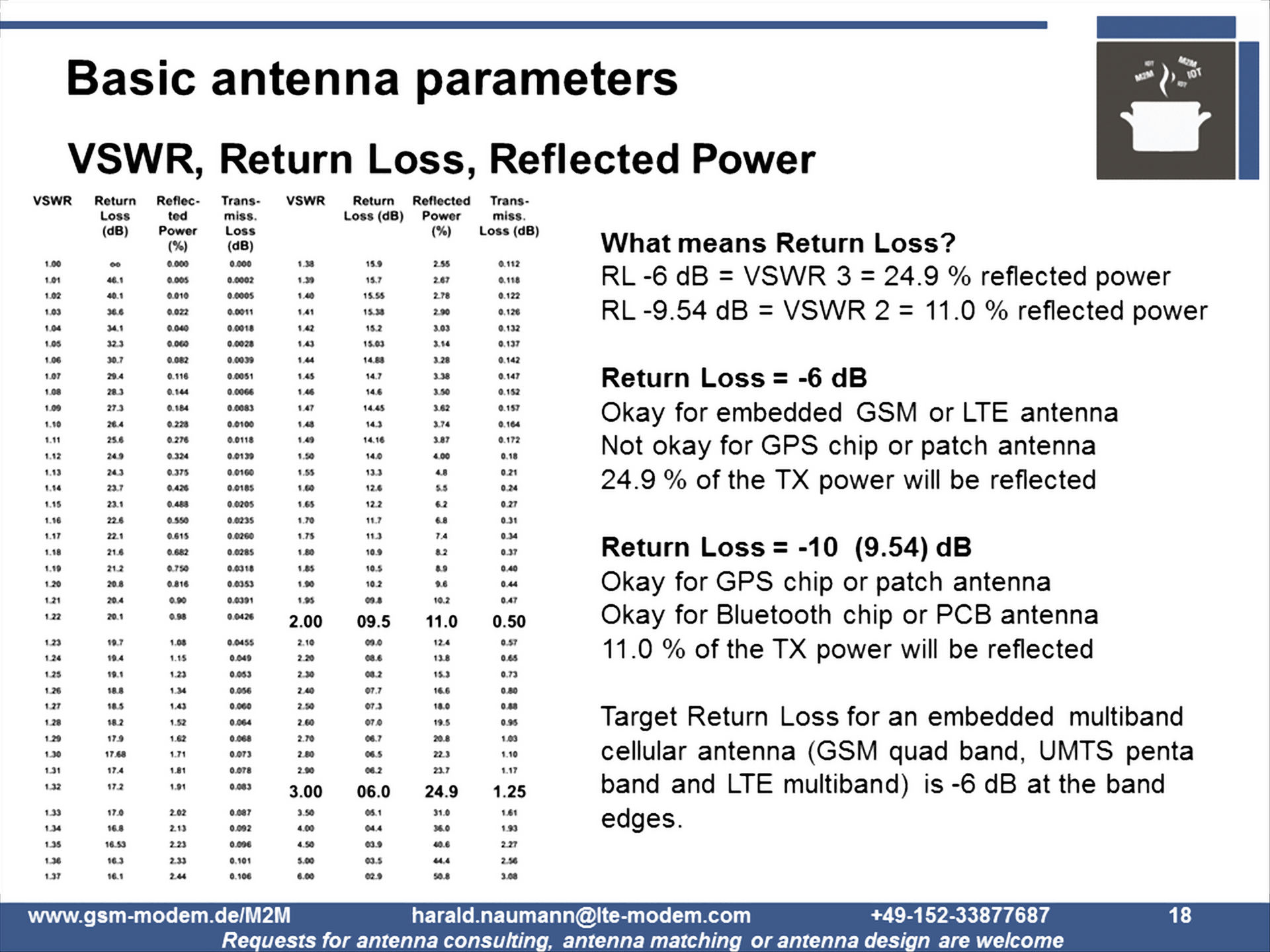

There is no reference for antennas on extremely small boards in small packages. Cellular chip antennas of different manufacturers all have a reference ground plane of approx. 45 mm +/- 10 mm x 100 mm +/- 20 mm. Nobody can cheat the physics. The length of the PCB influences the return loss. This is documented […]
As the question about the costs and the procedure for the matching of antennas frequently occurs, we have described the process and explained it with some examples of projects. To estimate the costs, the answers to the following questions are necessary. Standard questions on antenna matching: Which radio modules were used? How many radio modules […]
15th. November 2018, Munich, Germany Time 17:00 – 18:00 Session/Workshop Speaker: Roger Denker, MegiQ BV Language: English Registration (soon): https://www.wireless-congress.com/home.html In 60 minutes you will learn how easy it is to use a PC-based Vector Network Analyser (VNA) made by MegiQ. Examples to be presented at the Antenna Tutorial Part 1 will include live measurements […]
Wireless Congress: Systems & Applications 15th. November 2018, Munich, Germany Time: 16:00 – 17:00 Session/Workshop Speaker: Harald Naumann, tekmodul Language: English Registration: https://www.wireless-congress.com/home.html The wireless Internet of Things has a need for inexpensive wireless modules and antennas. An NB-IoT module will cost less than US$ 6 for a 1K unit order. A self-made NB-IoT antenna […]
Wireless Congress: Systems & Applications 14. November 2018, Munich, Germany Time 17:00 – 18:00 Session/Workshop Speaker: Wilhelm Oelers, Triptec HL UG Language: English Registration: https://www.wireless-congress.com/home.html Get your hands dirty with an NB-IoT application NB-IoT is the new shining constellation on the LPWAN sky. It stars are called low energy consumption, low price, small sized and […]
NB-IoT reference design in credit card size including PCB track antenna The wireless IoT market is crying for small mobile devices transmitting for years from tiny batteries. With akorIoT Nano we developed the next open design. “akor” is the Proto-Celtic word for “open”. With placing the order for akorIoT Nano you get the schematic diagrams, […]
The antenna design in this LoRa-Tag is based on the application note for the Texas Instruments DN038. The customer’s project objective was to match the antenna to the European 868 MHz band without changing the structure. Text excerpt from the TI application note “There are several ways to tune an antenna to achieve better performance. […]
1. IoT buttons In my region, two IoT buttons caused a buzz and landed in the basket of end customers. One is the Amazon Dash button and the other one is the Gillette order button called Gillette Club Station. LoRaWAN and SIGFOX had no chance as carriers because of the lack of deep indoor coverage […]

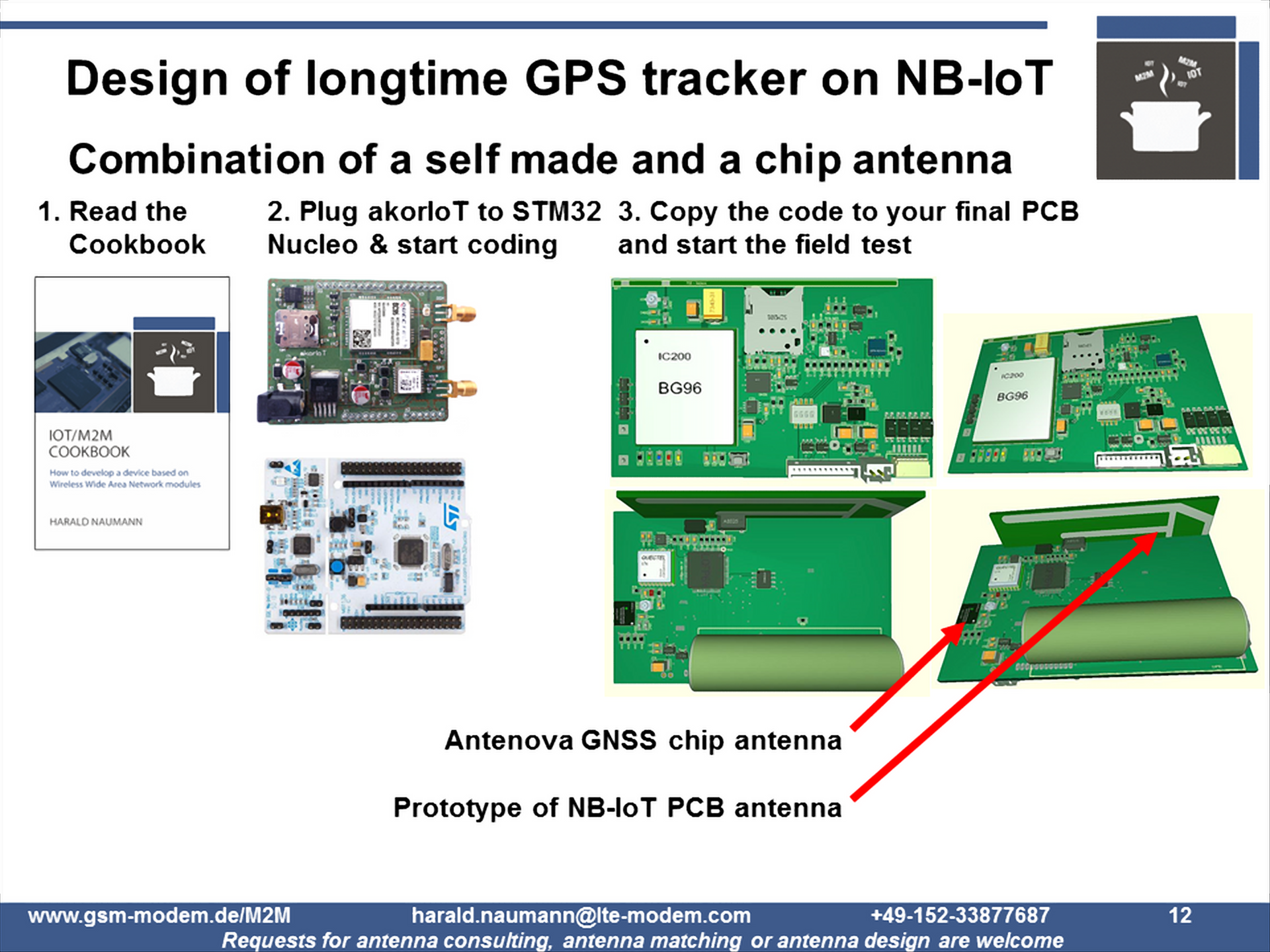

Last week I got the request to support a small GPS tracker. The request is not new to me. It reaches me in several times per year. However, it makes no sense to reinvent the wheel again and again. To minimise the effort for your GPS tracking project on NB-IoT, LoRaWAN, SIGFOX or Weightless P […]
Are we able to make a mint of money with such a low-cost BLE-GPRS-GPS-gateway? If yes then it makes sense to follow a train of thoughts listed in my IoT M2M Cookbook. Everybody can make such a gateway real for less than USD 15. In my IoT M2M Cookbook – excerpt here: http://www.gsm-modem.de/M2M/m2m_iot_cookbook I explained […]
.
