Low Cost GSM GPS Bluetooth module on Arduino shield

New GSM / GPS / Bluetooth module adapter for STM32 Nucleo, Arduino, Intel Galileo plus compatible PCBs

  • Your ideas?
  • Your wishes?
  • Your recommendation?
  • Your advice?

I will listen to you. Before I started to write the IoT / M2M Cookbook I asked business friends what they would like to pay for such a book.
A lot of them told that they would pay extra for evaluation kits and source code.
The time is right for an inexpensive IoT / M2M evaluation kit on the world’s smallest GSM/GNSS/BT module. Thank you in advance for your feedback.

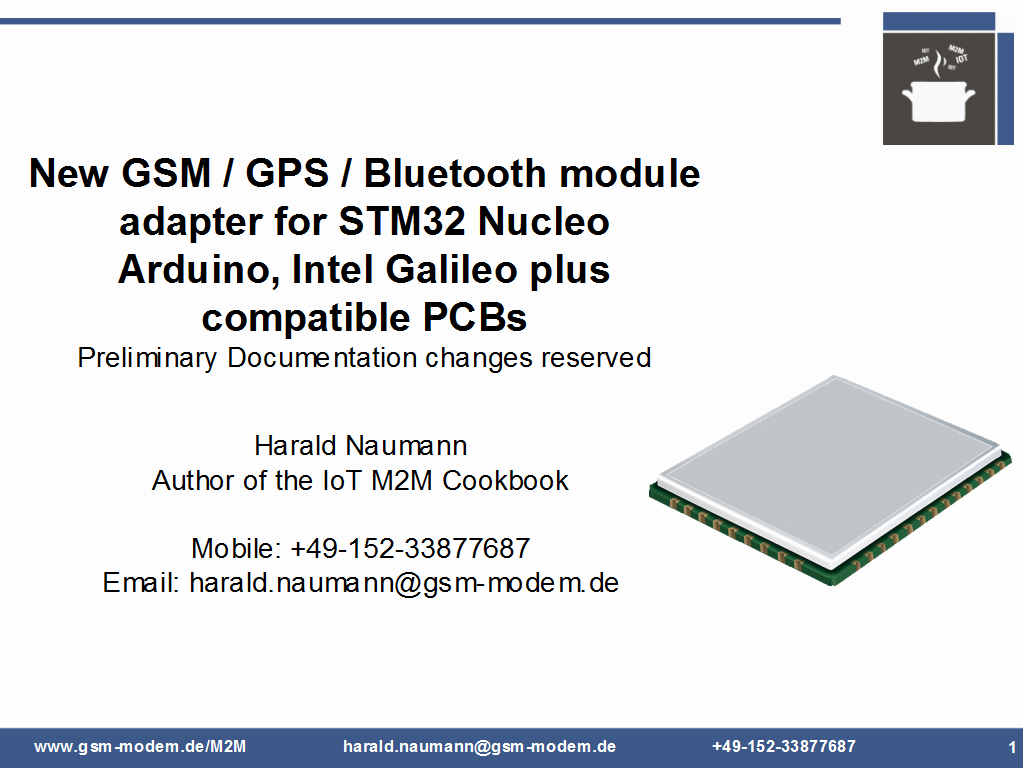

New GSM / GPS / Bluetooth module adapter for STM32 Nucleo Arduino, Intel Galileo plus compatible PCBs

Arduino GSM GPS Bluetooth shield

New GSM / GPS / Bluetooth module
adapter for STM32 Nucleo
Arduino, Intel Galileo plus compatible PCBs

Today I present the world first three in one GSM / GPS / Bluetooth adapter for Arduino, STM32 Nucleo and Intel Galileo for you. The GSM / GPS / Bluetooth adapter will support a lot of other maker kits or MCU evaluation kits with Arduino header as well. It wiill support 3V and 5V maker its in parallel.

Extension for the IoT / M2M Cookbook

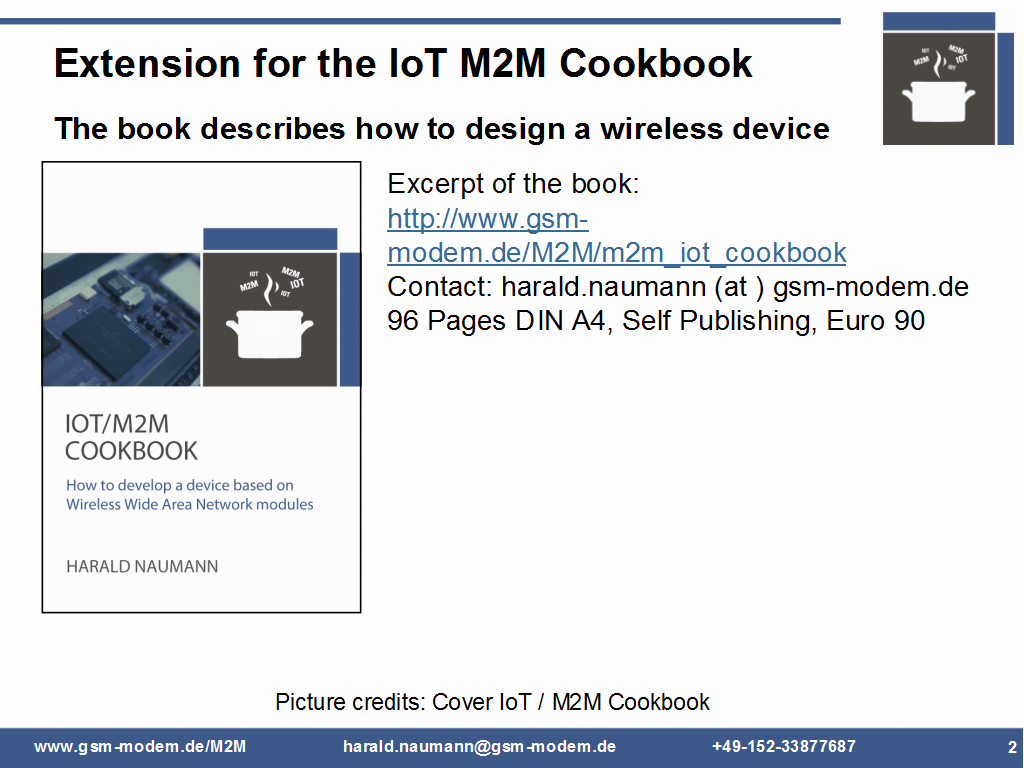

IoT / M2M Cookbook

IoT / M2M Cookbook

A lot of readers asked for an extension for the IoT M2M Cookbook. The time is right. They will get it. This RF adapter makes hobbists, stundents, teachers and industrial developers happy. The parents will get a useful present for the kids at thir next birthday or Xmas.

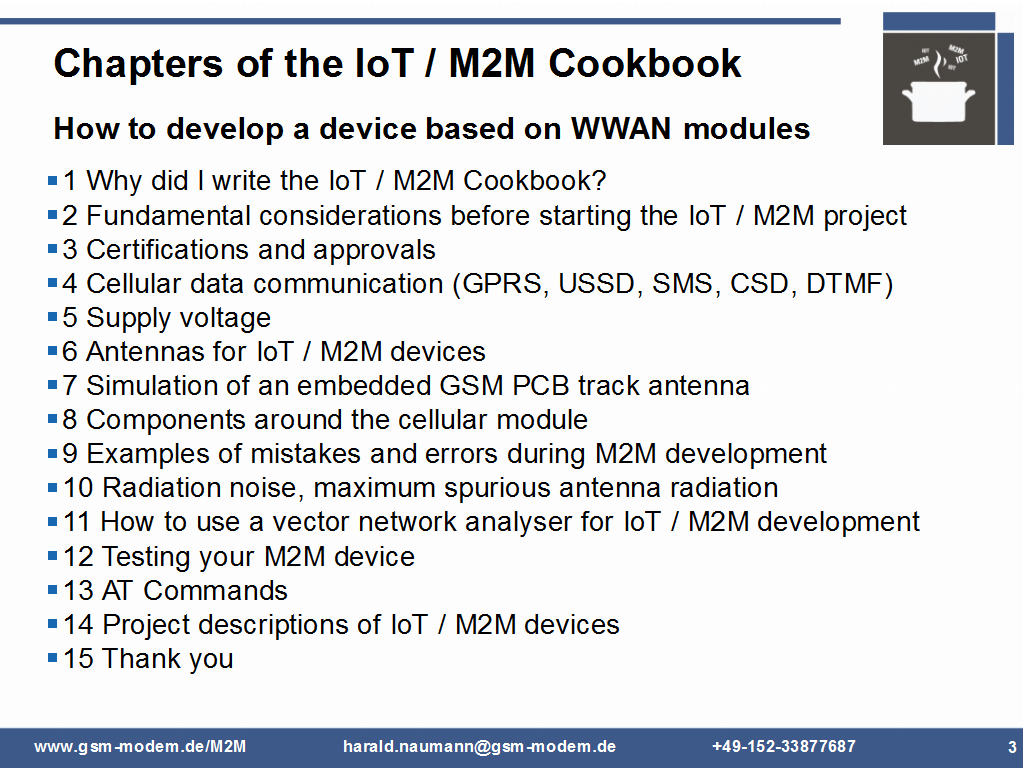

Table of content of the IoT / M2M Cookbook

Table of content IoT / M2M Cookbook

Table of content IoT / M2M Cookbook

1. Why Did I Write the IoT / M2M Cookbook?

I have worked in the Wireless M2M industry for more than a quarter of a century. Twenty-five years ago, we didn’t even have a word for “M2M” or “IoT”. We developed Machine to Machine devices without knowing that decades later these creations would be called “M2M devices”. Twenty-five years ago, the GSM network for wireless data communication did not exist. I took my first steps in wireless data communication with Frequency Shift Keying (FSK) on Private Mobile Radios (PMR).

Read more: http://www.gsm-modem.de/M2M/m2m_iot_cookbook/

GSM GPS Bluetooth Module features

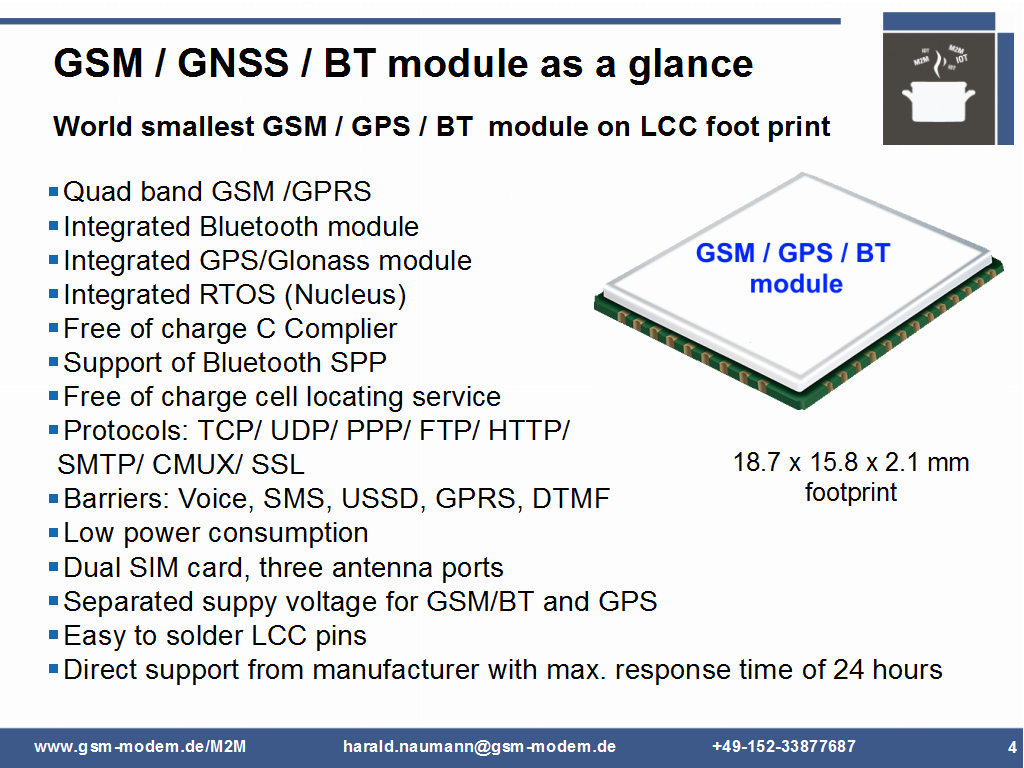

GSM GPS Bluetooth module as a glance

GSM GPS Bluetooth module as a glance

I got the details on this real hot IoT module some weeks ago and asked for more. I aleady have everything to start my GSM GPS Module shield. GPS is already wrong, because it is supporting GPS and GLONASS. Moreover, it comes with RTOS and free of charge C compiler. Truly spoken there is no need for a Arduino SDK. This IoT module can run independent. You can make an own emergency phone, asset tracker or pet tracker easily.

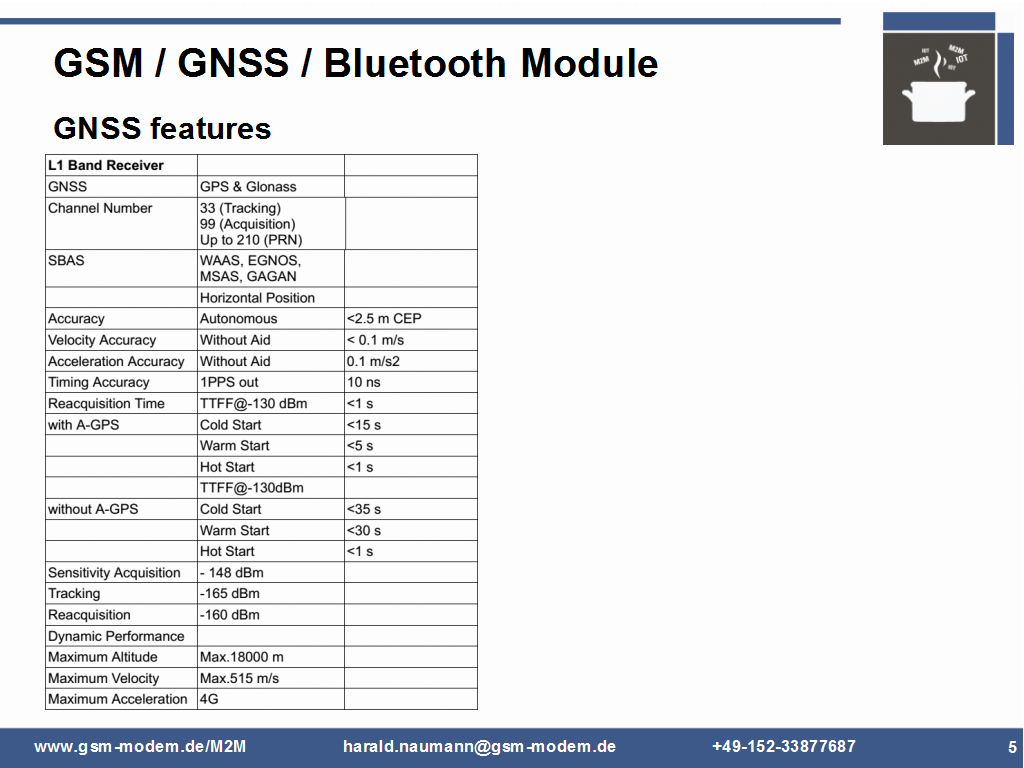

GNSS features of the IoT module



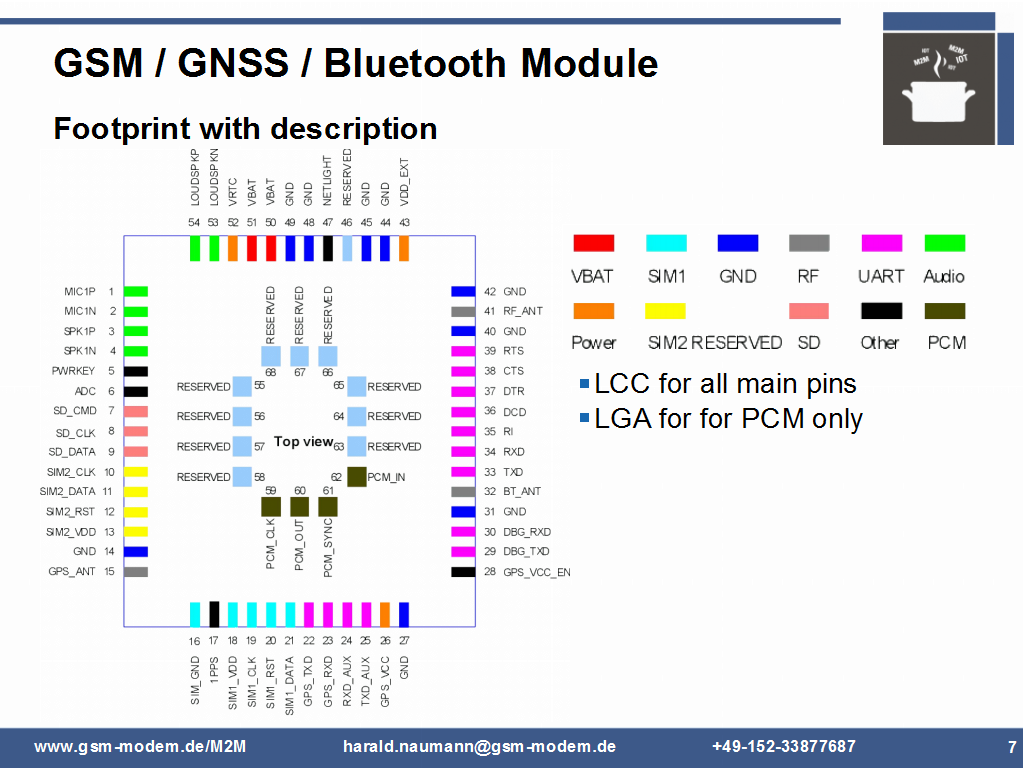

GSM GPS Bluetooth module pin description

GSM GPS Bluetooth module pin description

It supports GPS and Glonass. Without Glonass your IoT device will be taxed with 25%:

Russia to Tax Foreign GPS Hardware 25%

Russia will begin to tax foreign GPS hardware with a 25% tax. Russian vice-premier Sergei Ivanov said on Friday that the measure is being taken to ensure the use and growth of GLONASS the Russian GPS system.
Read more at: http://www.gsm-modem.de/M2M/m2m-news/how-to-reduce-costs-of-a-m2m-device/

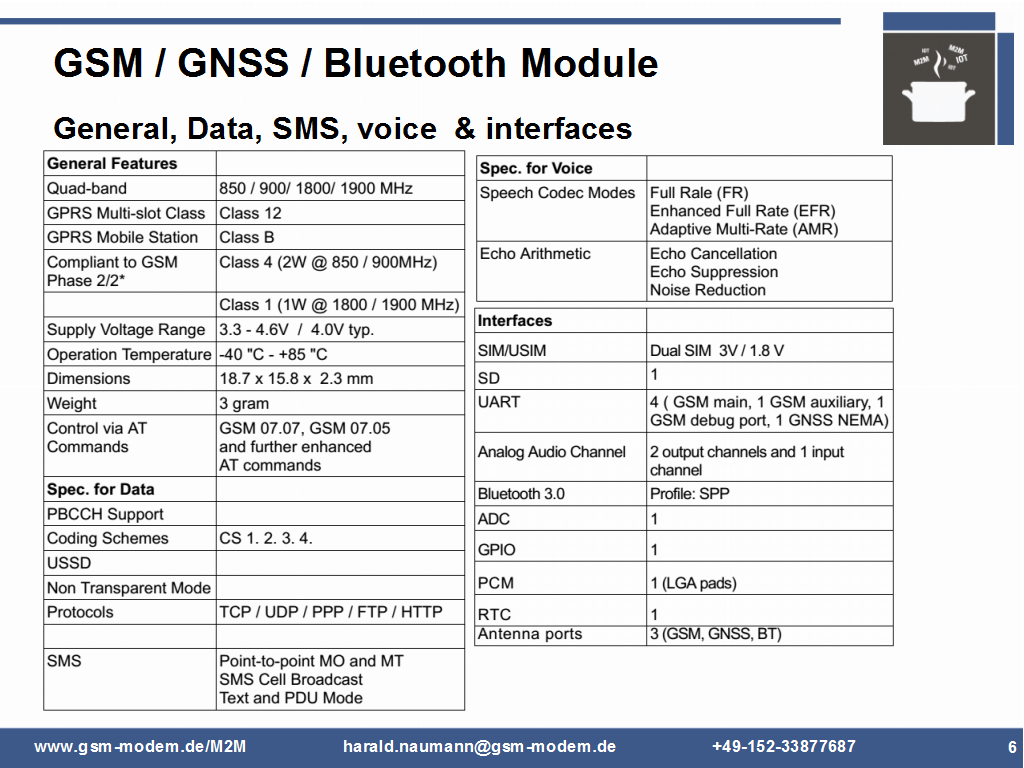

General, data, SMS, voice and interfaces of the module



GSM GPS Bluetooth module pin description

GSM GPS Bluetooth module – generl, data, SMS, voice, interfaces

If your plan was a dual SIM phone, then you can make it.

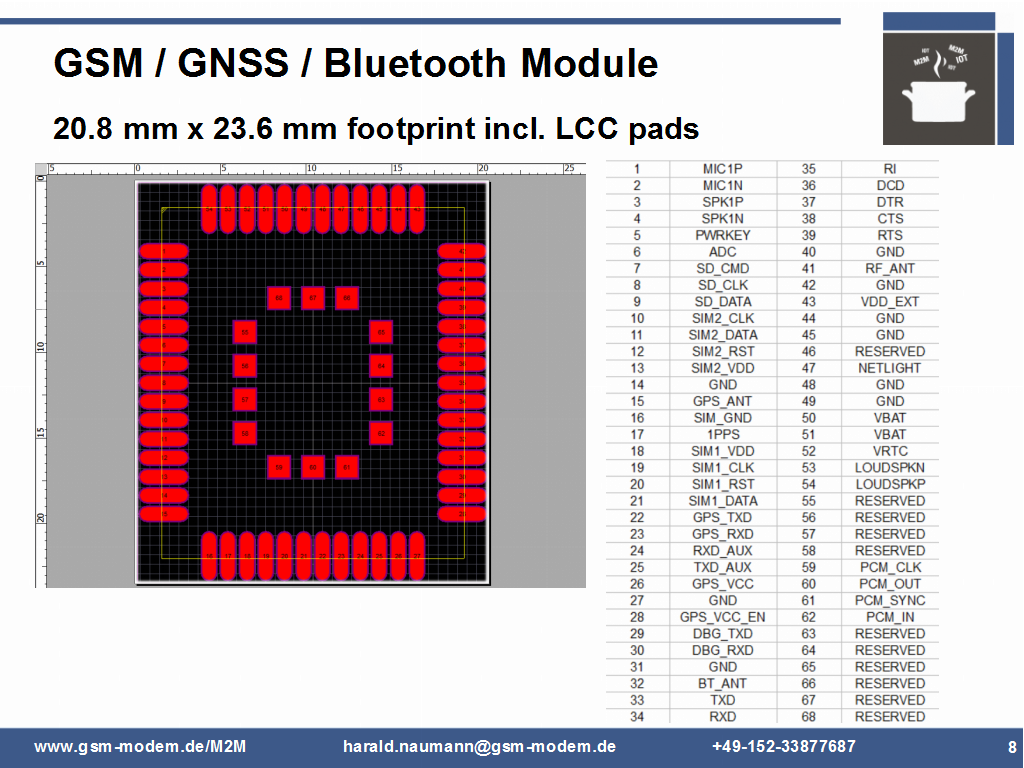

GSM / GPS / Bluetooth Module foot print

GSM GPS Bluetooth module foot print

GSM GPS Bluetooth module foot print



GSM / GPS / Bluetooth Module dimensions

GSM GPS Bluetooth module foot print and dimensions

GSM GPS Bluetooth module foot print and dimensions

The GSM / GPS / Bluetooth module footprint has on LCC a size of 18.7 mm x 15.8 mm only. With the LCC pins it is 23.8 mm x 20.8mm. It is already small enough to fit in your bicycle frame.

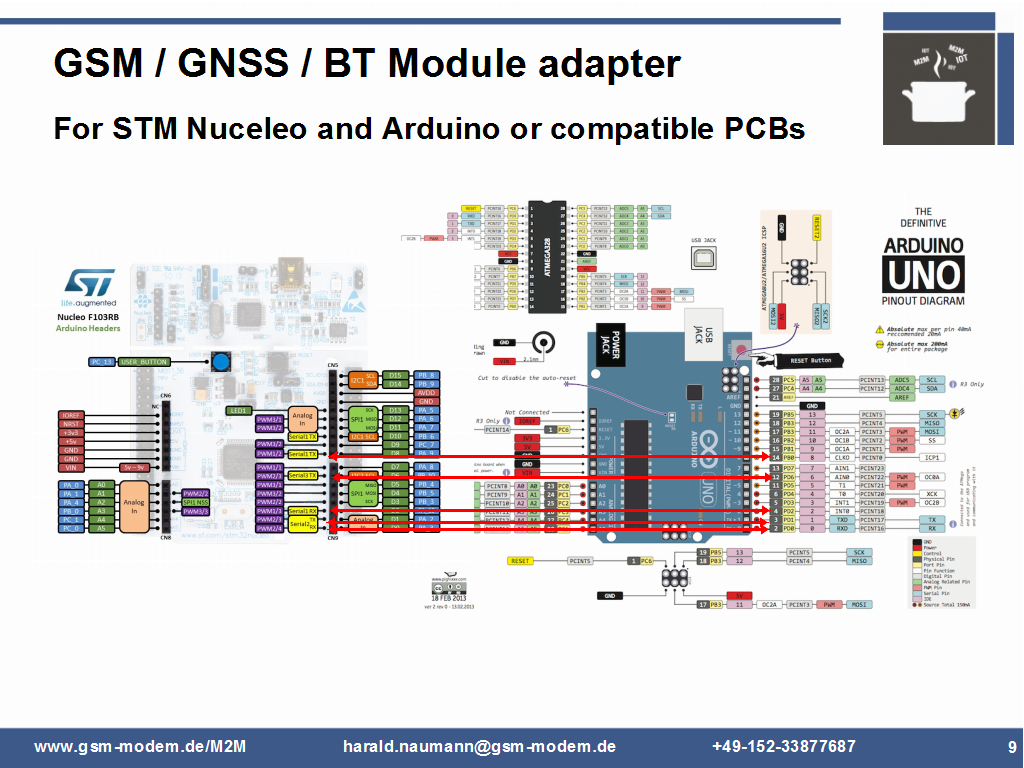

Comparision of Arduino header on two different boards

Arduino and STM32 Nucleo UARTS

Arduino and STM32 Nucleo UARTS

The UARTS on Arduino UNO and STM32 Nucleo are on diffferent pins. At Arduino UNO the only UART is to connect to the Arduino SDK. On Arduino UNO I will get three software UARTs. On STM Nucleo I will get three hardware UARTs and on Intel Galileo 2 there is two hardware UARTs. If I want a thrid UART, then I wil get it by software.

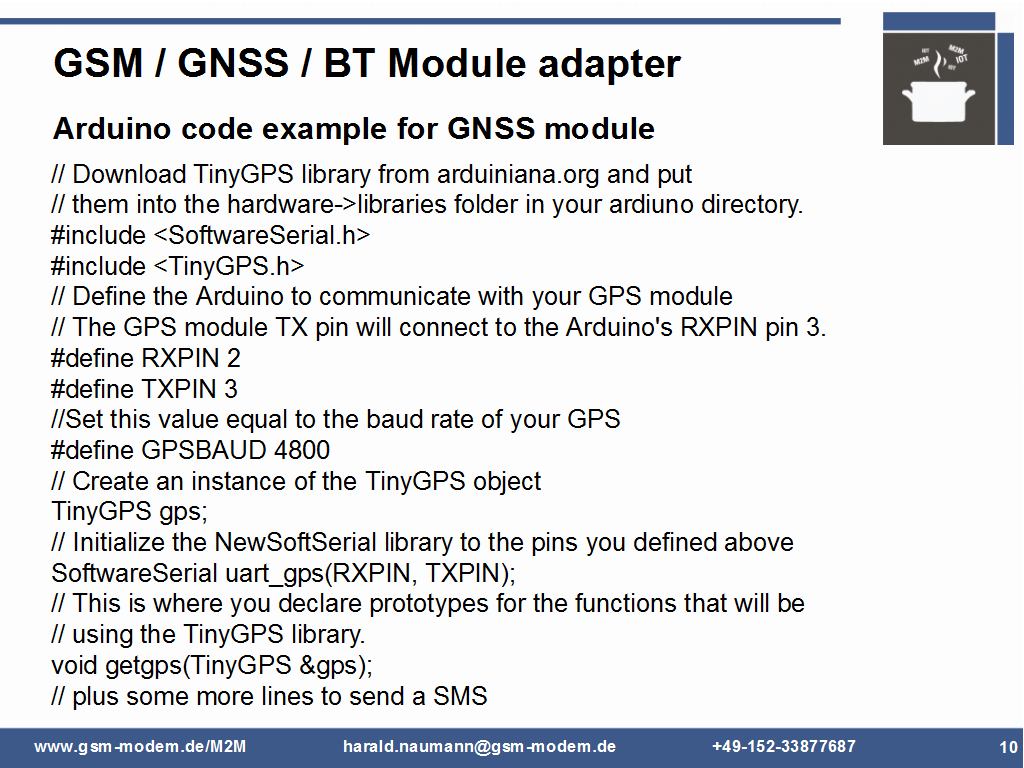

Arduino code to read the GPS data stream at software UART

Arduino_code_GPS_TinyGPS_0010

With the include SoftwareSerial.h and TinyGPS.h the Arduino UNO is ready to read the GNSS data stream.

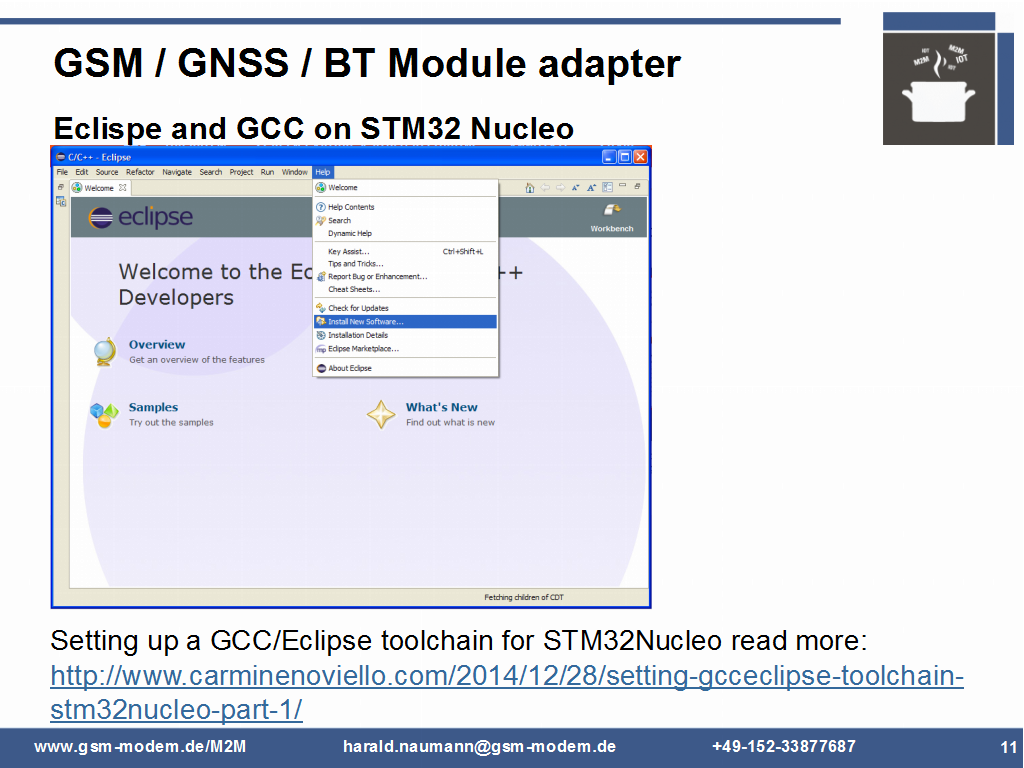

GCC Eclispe toolchain on STM32 Nucleo

Eclispe and GCC on STM32 Nucleo_0011

Well documented set up listed here: http://www.carminenoviello.com/2014/12/28/setting-gcceclipse-toolchain-stm32nucleo-part-1/

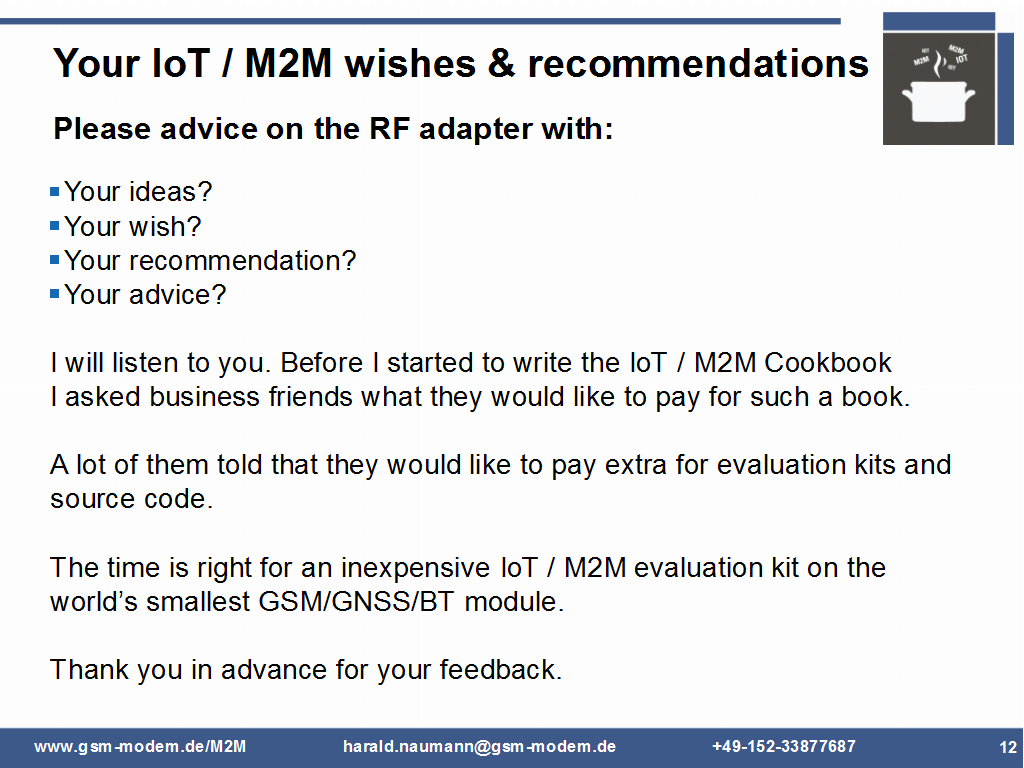

Your IoT / M2M wishes, hints and recommendations

Please advice on-GSM-GPS-BT-shield_0012

Your ideas? Your wishes? Your recommendation? Your advice?

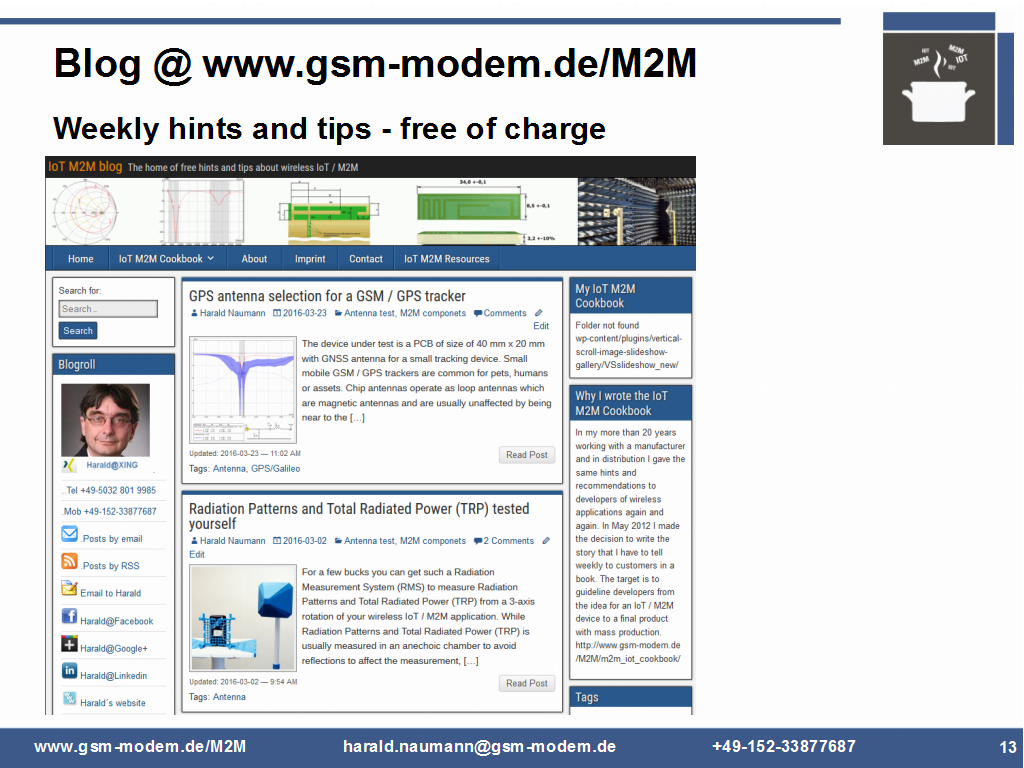

IoT / M2M blog with it weekly maker hints and tips

IoT_M2M_blog_0013

Subcription by Email
Subscribtion by RSS

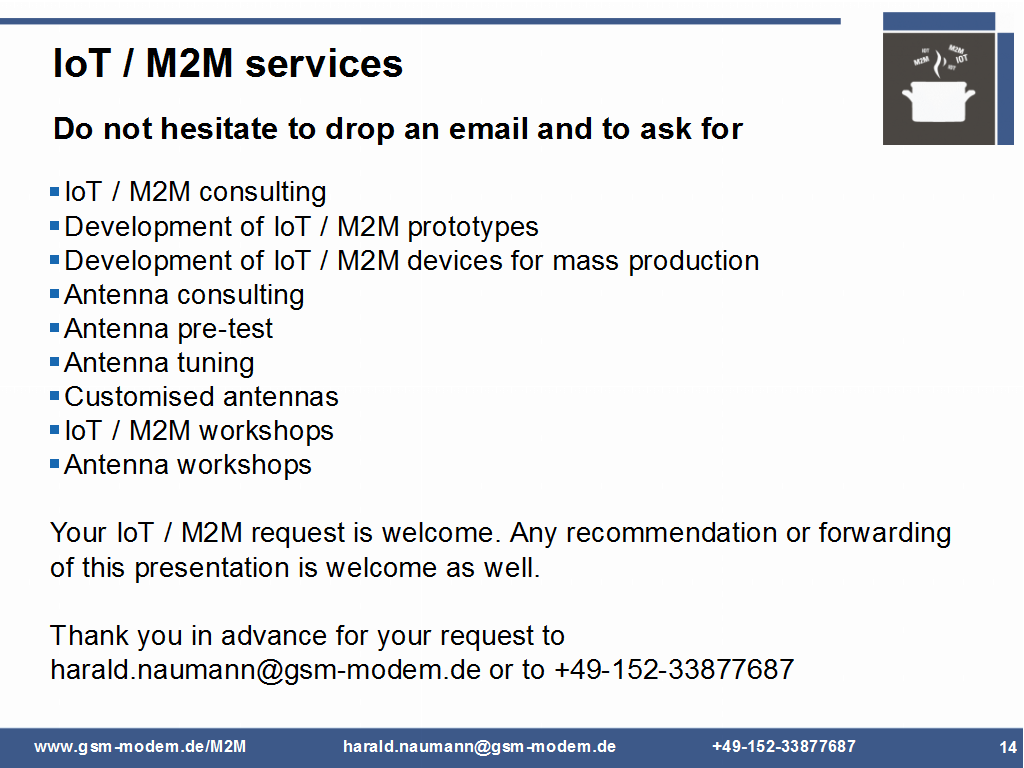

IoT / M2M services
