IoT sandwich – GPS chip loop antenna on bacon – 2

The DUT is a GPS loop antenna planned for a small GSM / GPS tracker of an estimated 40 mm x 20 mm. The goal of this test is to detect the bandwidth of the GPS antenna and the interference of meat placed close to the final GPS tracker.

Check of the ingredients of world´s first IoT sandwich

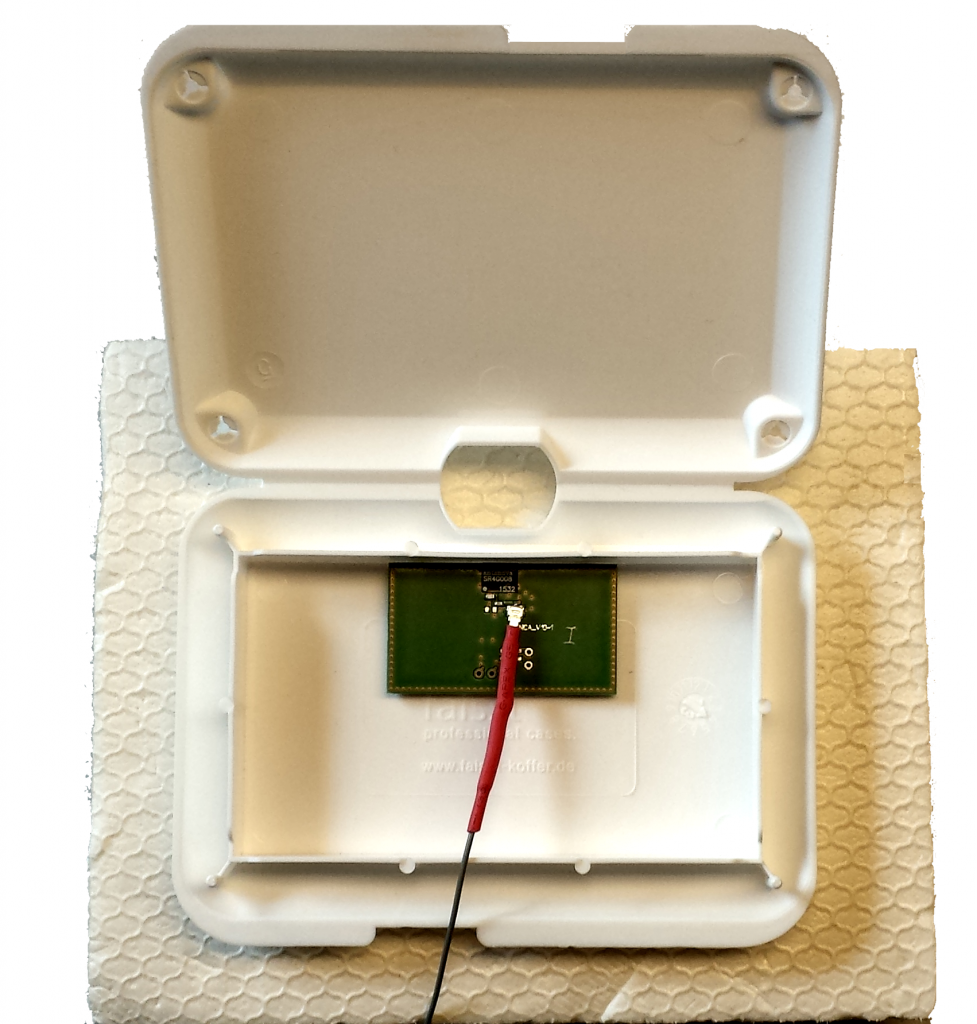

GPS chip loop antenna inside enclosure - open

GPS chip loop antenna inside enclosure – open

Before we start to cook (measure) we have a closer look at the ingredients. The plastic box is nothing special. It is a standard box for shipments of electronic components. For this GPS chip antenna test nearly any plastic box could do the job. However, the thickness of the plastic and the Epsilon R of the plastic should be close to the final material of your IoT / M2M application.
The Styropor block on your table will help to set the distance to the wood of the table.  Styropor has an Epsilon R similar to air of 1. Take care that there is no metal  on the underside of your table. A metal bar could interfere with the antenna.
The PCB with soldered GPS chip loop antenna is fixed with tape to the plastic enclosure to make sure that it will not move during measurement. The GPS antenna was already matched to another unknown environment. This means we will not expect to see the Return Loss peak in the middle of the GPS /GLONASS band.
The coaxial cable includes a small balun between U.FL connector and cable. With this balun we will ensure that the coaxial cable will be a part of the small ground plane of the PCB.

Nine different PCB antennas – today just one is under test

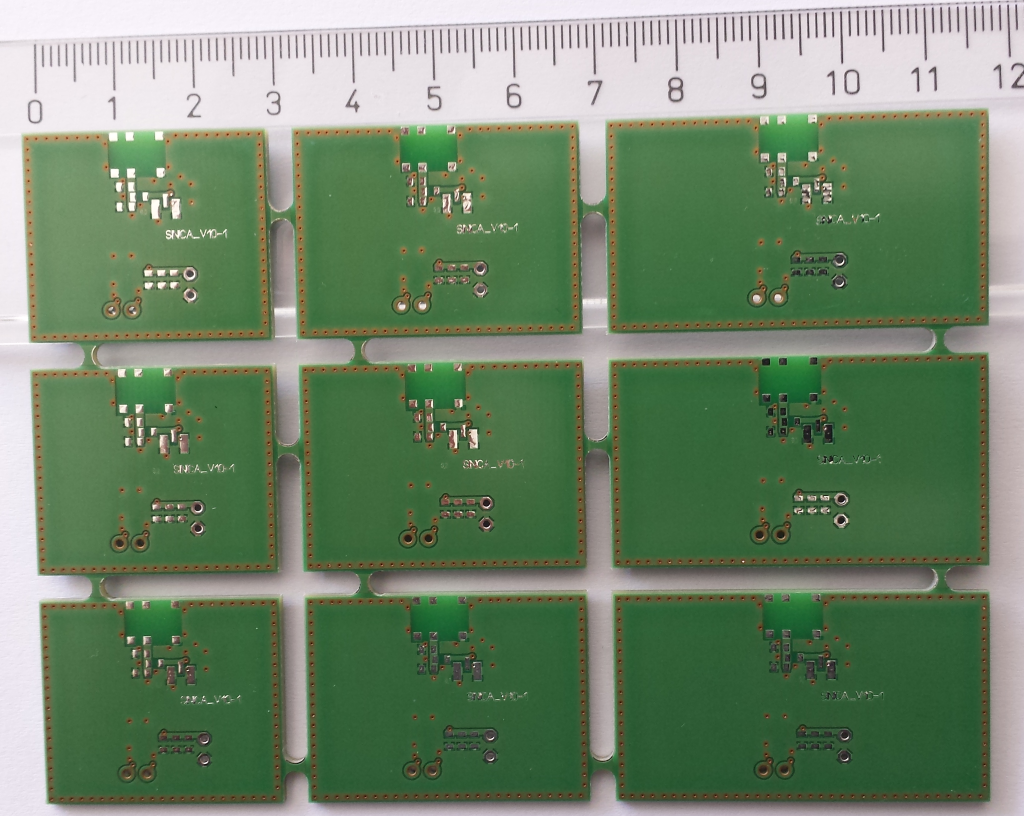

GPS chip loop antenna - test PCB - top

GPS chip loop antenna – test PCB – top

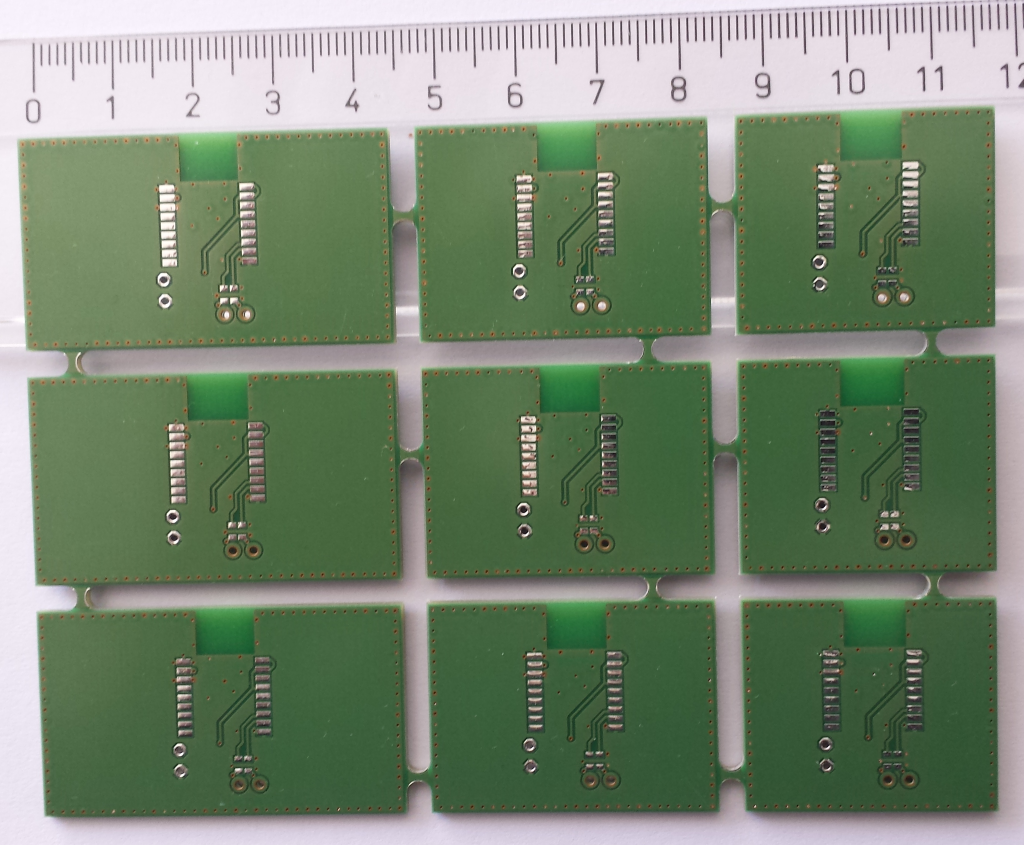

GPS chip loop antenna - test PCB - backside

GPS chip loop antenna – test PCB – backside

From the nine different PCBs we will use one for this delicious recipe. The other eight PCBs we will use for the main course or the derserts. Furthermore, the PCBs are prepared to hold different types of GPS modules. Today we will focus on the effect of meat close to the GSM / GPS tracker.

Closer look on the ingredients of the IoT sandwich

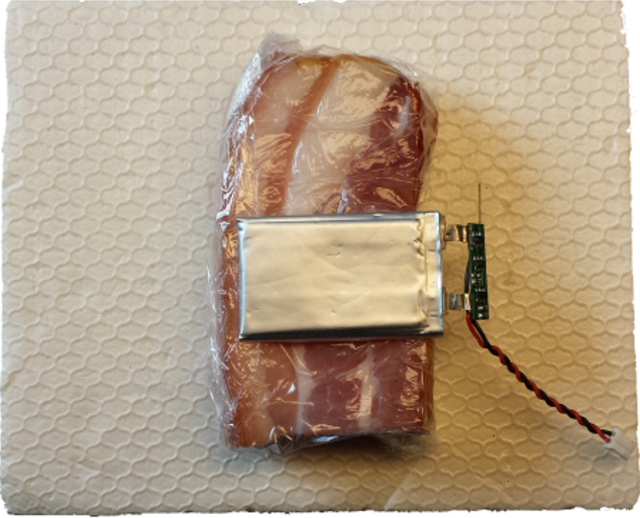

Bacon & battery

Bacon & battery

The battery is not connected to the PCB. The battery was just used to create a distance between the GPS antenna on the PCB and the bacon. In the real GSM GPS tracker design there will be a sandwich structure:

  • Body of the dog, cat or human
  • Plastic of the mounting bracket on the wristband or dog collar
  • Plastic enclosure of the GPS tracker
  • Air between the plastic and the PCB
  • FR4 of the PCB
  • GPS chip loop antenna

The sandwich topology will help to get the distance to the GPS chip  loop antenna. In the final device the H-field (magnetic field) of the GPS loop antenna must not  pass any metal.

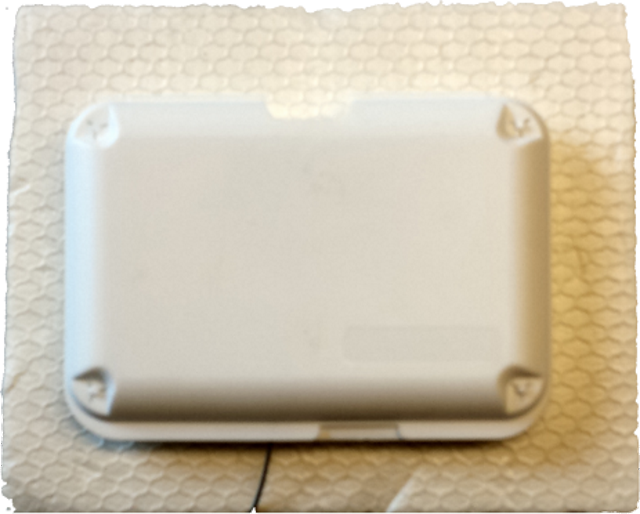

Box closed – ready for tests with Vector Network analyser



GPS chip loop antenna inside enclosure

GPS chip loop antenna inside the enclosure



For the first step of this test we closed the enclosure. We got a sandwich structure of:

  • Plastic of the mounting bracket at wristband or dog collar
  • Plastic enclosure (bottom) of the GPS tracker
  • Air between the plastic and the PCB
  • FR4 of the PCB
  • GPS chip loop antenna
  • Air between the antenna and the top of the enclosure
  • Plastic enclosure (top) of the GPS tracker

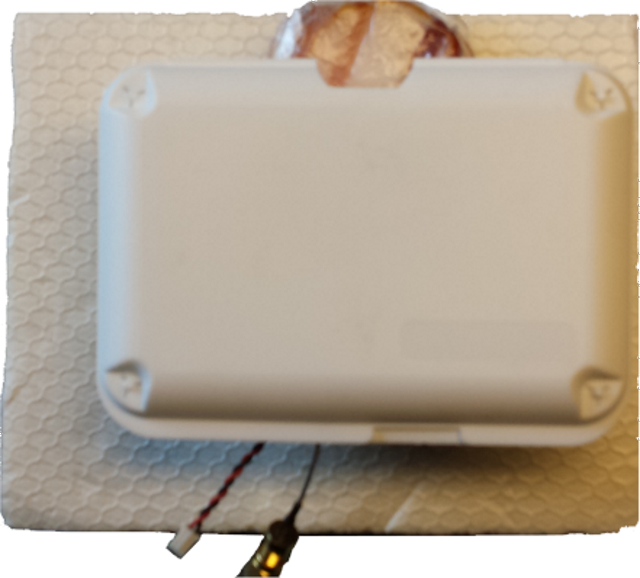

Box closed on meat (bacon) – ready for enhanced tests with VNA

GPS chip loop antenna inside enclosure on bacon

GPS chip loop antenna inside enclosure on bacon



For the second step of this test we closed the enclosure. We now had  a sandwich structure of:

  • Body of the dog, cat or human
  • Plastic of the mounting bracket at wristband or dog collar
  • Plastic enclosure (bottom) of the GPS tracker
  • Air between the plastic and the PCB
  • FR4 of the PCB
  • GPS chip loop antenna
  • Air between the antenna and the top of the enclosure
  • Plastic enclosure (top) of the GPS tracker

Return Loss of the IoT sandwich with and without meat

GPS antenna - frequency jump on bacon

GPS antenna – frequency jump on bacon

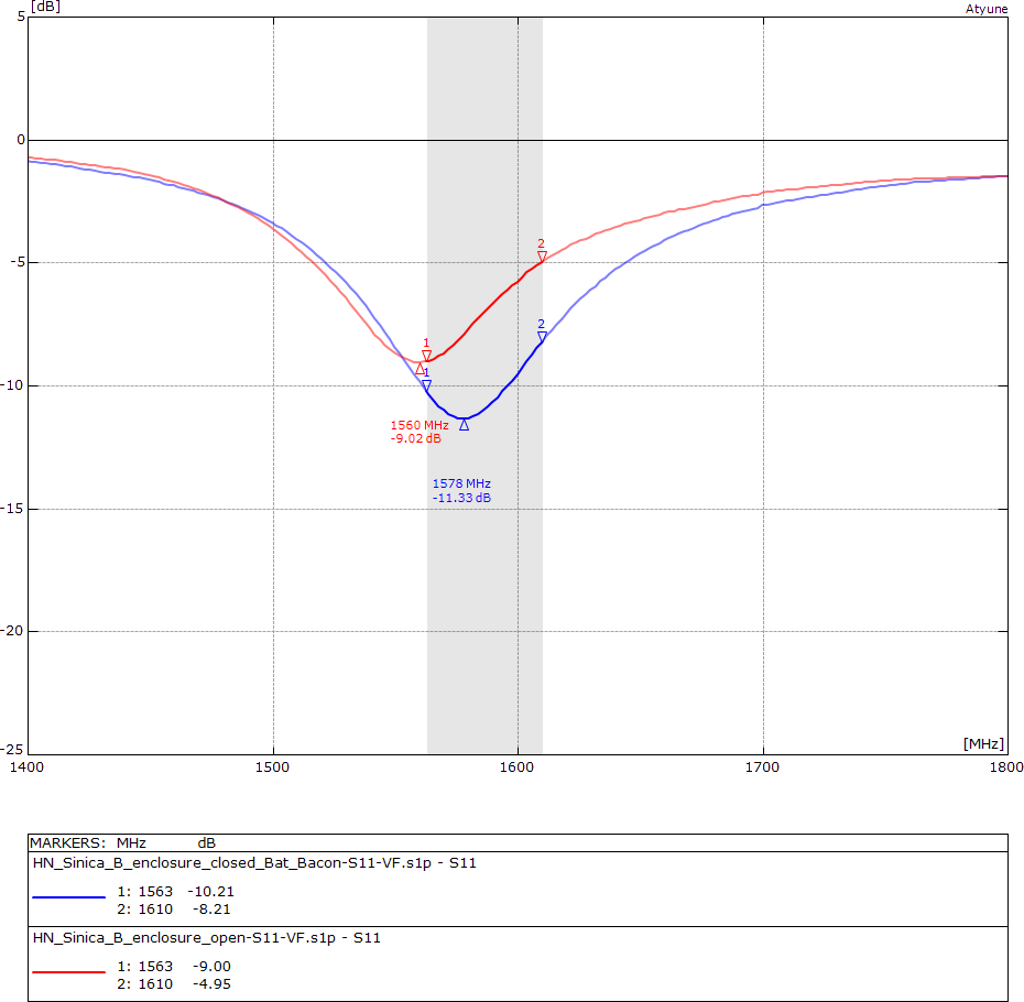

The red curve shows the GPS chip antenna without the body (bacon) close to the DUT. The red marker 1 shows -9.00 dB at 1563 MHz and  red marker 2 -4.95 dB at 1610 MHz. This is okay for a GPS antenna which was matched on an unknown environment. The blue curve shows the same GPS chip antenna on meat (Bacon). The blue marker 1 shows -10.21 dB at 1563 MHz and blue marker 2 -8.21 dB at 1610 MHz.
Furthermore, we add two markers at the peak of the red and blue Return Loss curve. The red peak is at with -9.02 dB at 1560 MHz and the blue peak is with – 11.33 dB at 1578 MHz. With the meat close to the GPS antenna we got a frequency jump of 18 MHz (1578 MHz – 1560 MHz).

GPS chip antenna consulting

The DUT under tests has shown that there is a desperate need for antenna testing in close to real conditions. Be aware that the data sheets of the GPS antenna manufacturers show Return Loss in free space only. To avoid a nasty surprise there is a much better approach. The solution is antenna testing by a third party including documentation on Return Loss on a non-matched antenna, simulation of the matching circuit plus matching with passive components and measurement by Vector network analyser again.

Step 1 – GPS antenna pre-test

  • Test by VNA of the origin non-matched antenna on PCB
  • Export to S1P files and export to PNG files
  • Simulation of the matching circuit
  • Export to S1P files and export to PNG files again
  • Test report in format PDF

The pre-test will always contain the test report and the S1P file of the original PCB without matching. With the S1P file the customer of the pre-test can simulate matching circuits on their own. Such a pre-test costs only Euro 240. If the selected antenna does not pass the pre-test, then you can stop because you know you will need another antenna for your IoT M2M design.

Step 2 – GPS antenna test at environment

  • Test by VNA of the origin non-matched antenna on PCB
  • Export to S1P files and export to PNG files
  • Simulation of the matching circuit
  • Export to S1P files and export to PNG files again
  • Test report in format PDF

The test in a real environment will cost more due to the additional time and effort. We selected a pet or person tracker as an example. We emulated the body with a piece of bacon. Just to let you know that we tested with fresh meat (a chicken) sealed in a plastic box as well. The result was nearly the same. Dryer cured meat like Parma ham or Serano ham will not do the job perfect, because both types of ham were preserved by air drying.

If you are interested in an antenna pre-test, antenna test at real  environment or antenna consulting for selection then do not hesitate to drop an email to harald.naumann (at) gsm – modem .de
