GSM modem for industrial applications

Industrial GSM modem with digital and analogue inputs

GSM modem industrial

GSM modem industrial

GSM-Modem: GSM 850, 900, 1800 and 1900 class 4 (2W)
Operating voltage: 10 – 28 VDC
Emergency power supply: intern (approx. 6h)
Number of inputs: 10
Digital inputs: 7 (8) via optical couplers
Analogue inputs: 2 (11-Bit)
Hour Meter:
Event counter:
1 via optical couplers
1 via optical couplers
Number of outputs: 4
Input voltage range: D: 0 / 28VDC
A: 0 to 10VDC
Battery and voltage monitoring: internal (separate reporting possible)
Electrical connection: Screw
Antenna connector: SMA/M
Ambient temperature: -25°C bis +70°C
Protection class: IP 20
Mounting: Mounting on rail DIN EN 50022-35
Housing: PC with 10% GF, V-0 grey
Dimension
71,6 x 62,2 x 89,7mm
Weight: 0,130kg
GSM Modem

GSM Modem

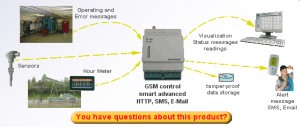

For alarm and fault messages the GSM modem offers eight digital, two analogue inputs and four digital outputs. Optional digital inputs can be used as event counter, hour meter and gas meter counter. The internal battery backup of the GSM modem ensures the monitoring during power failures. The meter reading, hours of operation and status of your equipment or machines will be constantly monitored. On event your service technician or a central office will be informed by SMS, email or fax. The collected data can be displayed clearly in a normal web browser of PC or smart phone. For operation of the GSM modem only a standard SIM card with data option is required. The configuration will be done with web browser over the Internet or standard smartphone. The housing of the GSM modem is conform according to DIN 43880 and ensures trouble-free operation in all standard installing cabinets.

Anyhow, we will keep you posted by further blog posts related to industrial GSM modems. For details please do not hesitate to send an email to harald.naumann (at) gsm-modem.de or using the form here.
