HL6528 eval kit – ask for sample

Technical features of the HL6528

  • HL6528 eval kit

    HL6528 eval kit

    Network Technology: GPRS, GSM

  • GNSS: Optional GPS/Glonass with HL6528-G
  • Frequency Bands: 850/900/1800/1900 MHz
  • Carrier Certifications: Orange, Telefonica, Vodafone
  • Regulatory Certifications: R&TTE, CE, GCF-CC, FCC, PTCRB, RoHS Compliant
  • Operating temperature: -40°C to +85°C
  • Form factor: Solder-down / SMT Mounting

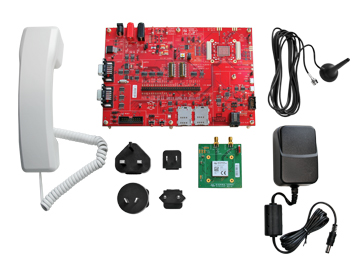

The HL6528 development kit includes:

  • 1 AirPrime HL6528 module on socket boards
  • 1x HL Series development kit mother board
  • 1x power supply AC100/240V, DC 4V/2.5A
  • 1x multiple AC outlet adaptor
  • 1x integrated quad-band GSM antenna/ penta-band WCDMA/ GPS & Glonass (SMA)
  • 1x handset with cable

Ask for sample, prototypes or development by email to harald.naumann (at) gsm-modem.de

4 Comments

Add a Comment
  1. Some of the AT commands are not working??send me the exact AT command set for HL6528 sierra wireless modem…..

  2. Dear Shyam, the AT command list you will get for download at the website of the manufacturer. I am not using HL6528 anymore. I moved to other modules with support of GPS, Glonass, Beidou and Galileo plus embedded data logger and detection of movement.

  3. Dear Mr. Naumann,
    Ill be appreciate for a suggestion if you know a ultra low power battery friendly GPRS modem?

    Thank you in advance
    Kind regards,
    A. Norbert Rueger

  4. Dear Mr. Rueger, is 1 mA and still receiving low power? If yes, then drop me an email to harald.naumann (at) gsm-modem.de . I vcan help with wth cellular modem, the antennas and even more.
