GPRS camera on embedded Linux made easy

GPRS camera kit at a glance

  • Controller with periphery
    • CPU ARM9 AT91SAM9260  (200 MIPS)

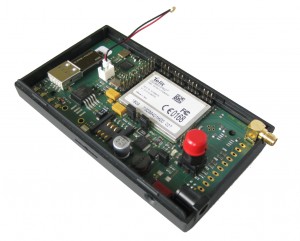

      Single-PC-with-GPRS-module

      Embedded PC on Linux as base for your GPRS camera

    • RAM for 64 MB application
    • Data Flash (Non volatile) 4 MB up to 128MB Flash
    • SD card / MMC card
    • GPI0 Pins , AD / DA converter
    • COM-Ports, USB Device, USB Host, I2C, SPI
    • JTAG Interface
    • Charging circuit for LIPO Battery
    • DC/DC Power Supply, input voltage 6 to 32V
  • Radio modules
    • Quad-Band GSM/GPRS Module incl. SIM card holder
    • GPS, Bluetooth, Wifi, ZigBee, 6LoWPAN or other as option on USB
  • Operating system
    • Embedded Linux Kernel Version 2.6.24
  • 168 supported cameras like:

    Intel PC Camera Pro, ViewQuest M318B, Kodak DVC325, DLinkDSC350, Creative PCCAM300, Aiptek Mini PenCam 2 M, Genius VideoCAM Express V2, Hama USB Sightcam 100, Petcam, Arowana 300K CMOS Camera …

The GPRS camera evaluation kit contains

Main board with GPRS module and embedded PC, Ethernet-IP-Link, Linux source code, software development environment,   GSM-antenna, source code for GPRS camera and  schematic diagrams.

We will be glad to share our more than 15 years in GSM and GPS with you. Do not hesitate to ask for the GPRS camera evaluation kits.
Just send an e-mail by using the form here or by e-mail to harald.naumann (at) gsm-modem.de .

3 Comments

Add a Comment
  1. Generally I don’t read post on blogs, but I wish to say that this write-up very forced me to try and do it! Your writing style has been surprised me. Thanks, very nice article.

  2. Dear Sir,

    This main board is very excited, thank for you share. I want to ask you, beacause this your post was in 2011, so now this main board has any change?
    If I want to buy, how much does it cost per one?

    Thanks,
    Cuong

  3. The GSM module with Linux core is channceled in the meantime.
