HSPA GPS M2M modem

By selecting of a HSPA modem your app will stay alive,even when the 2G networks will be switch-off

HSPA GPS M2M Modem

HSPA GPS M2M Modem

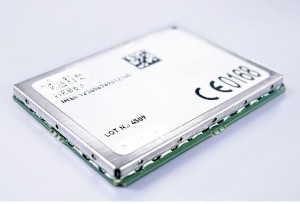

This HSPA GPS M2M modem, is a powerful, low-cost and fully equipped HSPA M2M modem with embedded GPS receiver and 22 GPIOs a BGA form factor.

BGA technology is easy to process and permits a high number of inputs and outputs on a relatively small footprint. BGA modules are fitted by means of a grid of solder balls on the underside of the package. The BOM is reduced as no board-to-board connectors are required.

The HSPA GPS M2M modem measures a compact 31.4mm x 41.4mm x 2.9mm.

The HSPA GPS M2M modem supports quad-band GSM, GPRS/EDGE multi slot class 33, 3GPP stack Release 6 and dual-band HSPA with 5.76 Mbps (uplink) and 7.2 Mbps (downlink). There are three pin-compatible variations of HSPA (900/2100, 850/1900 and 850/2100) to enable global use. The HSPA M2M modem comes with an optional embedded GPS/A-GPS receiver.

The HSPA M2M modem is intended for data transmission devices with a long lifetime that are intended for long-term use even after 2G network switch-off and require high throughput. Examples for application fields are smart metering, healthcare, surveillance and tracking applications.

It has a very low power consumption and can be used in a temperature range of -40 °C to +85 °C.

Do you have further questions and would like to start the development of your own wireless M2M app right now? We will be glad to share our more than 15 years in GSM and GPS plus 25 years in radio communication with you. Just send an e-mail by using the form here or by e-mail to harald.naumann (at) gsm-modem.de .

HSPA GPS M2M modem

By selecting of a HSPA modem your application will stay alive,even when the 2G networks will be switch-off. This HSPA GPS M2M modem, is a powerful, low-cost and fully equipped HSPA M2M modem with embedded GPS receiver and 22 GPIOs a BGA form factor.

BGA technology is easy to process and permits a high number of inputs and outputs on a relatively small footprint. BGA modules are fitted by means of a grid of solder balls on the underside of the package. The BOM is reduced as no board-to-board connectors are required.

The HSPA GPS M2M modem measures a compact 31.4mm x 41.4mm x 2.9mm.

The HSPA GPS M2M modem supports quad-band GSM, GPRS/EDGE multi slot class 33, 3GPP stack Release 6 and dual-band HSPA with 5.76 Mbps (uplink) and 7.2 Mbps (downlink). There are three pin-compatible variations of HSPA (900/2100, 850/1900 and 850/2100) to enable global use. The HSPA M2M modem comes with an optional embedded GPS/A-GPS receiver.

The HSPA M2M modem is intended for data transmission devices with a long lifetime that are intended for long-term use even after 2G network switch-off and require high throughput. Examples for application fields are smart metering, healthcare, surveillance and tracking applications.

It has a very low power consumption and can be used in a temperature range of -40°C to +85°C.
