Embedded GSM antenna

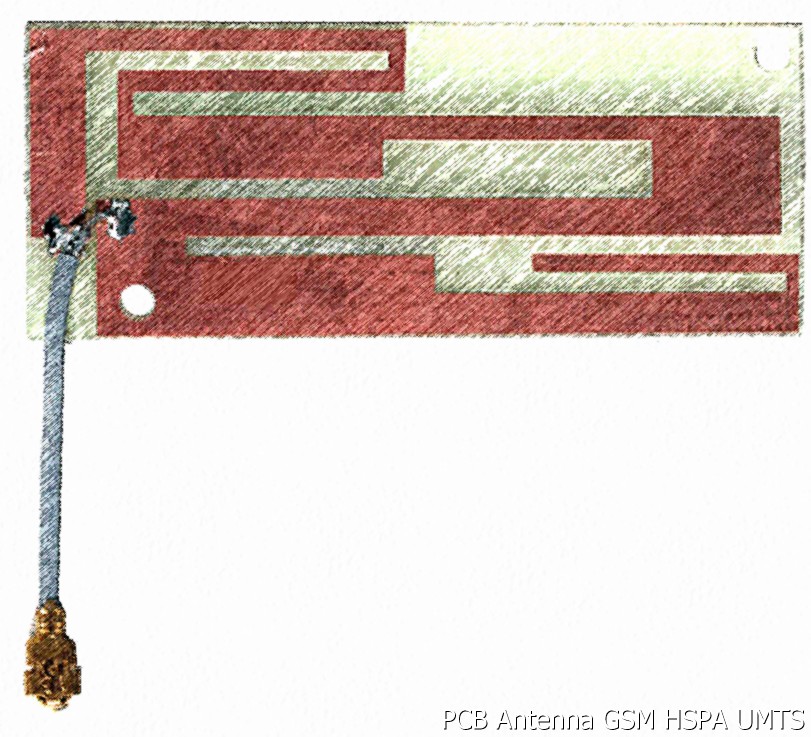

Embedded GSM antenna based on flexible PCB

A flexible PCB gives you an ultra flat shape and the freedom to glue the embedded GSM antenna inside your box, even it has a rounded shape. This embedded GSM antenna is ideal  for use with cellular modules with Assisted GPS functionality on board where only one antenna connection is available. The antenna has been designed  in a flexible material with a  rectangular form -factor  and cable connection for an  easy installation. The embedded GSM antenna works on different plastics and thickness.

Technical data of this embedded GSM antenna

• Supported band: GSM 850,900,1800,1900, UMTS 2100
• Frequency  (MHz): 824~960 1710~2170
• Impedance: 50 Ω
• Dimensions (mm): Ultra small 70 x 20 x 0.1
• Ground plane used (mm): 106 x 45
• Gain: 1.5 dbi ~ 3 dbi
• Band, frequency, antenna efficiency
  • GSM 850/900 , 824 ~ 960 MHz, 52~55%
  • GSM 1800, 1710 ~ 1850 MHz,  60%
  • GSM 1900, 1850 ~ 1990 MHz, 62%
  • UMTS 2100, 1920 ~ 2170 MHz, 65%
  • GPS 1575.42 MHz 50%
