Vehicle tracking device with embedded GSM / GPS antennas

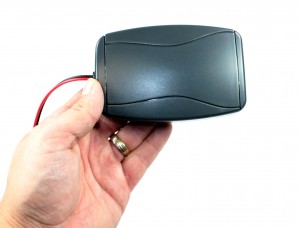

All in one Vehicle tracking device

vehicle tracking device

vehicle tracking device

This vehicle tracking device is a highly flexible plug and play GSM 850 900 / GSM 1800 / GSM 1900 modem with embedded GPS module for direct and easy integration in your vehicle. The GSM antenna and the GPS antenna are embedded in the vehicle tracking device. This saves trouble during installation, money for external GSM /GPS antennas and time for installation as well.
The supported bearers are SMS and GPRS on TCP/IP stack. GPRS on TCP/IP stack is the main bearer and SMS is fall-back only. Nevertheless if you like it can run on SMS only.

This vehicle tracking device is based on latest hardware.

GSM module Quad band

Inside the tracker is Quad band GSM / GPRS module with high sensitivity and low power consumption.

Embedded GSM antenna

The embedded GSM antenna saves the hustle and trouble during installation. It is a customized embedded GSM antenna to give customers best performance.

GPS module

There is a GPS module parallel to the GSM module in use.

GPS patch antenna

A GPS patch antenna with dimensions of 25x25x4 mm

Vehicle tracking device test trip

A trip from Rostock to Berlin has shown best performance. The device was installed under the seat of the driver and had few to ground. Yes you are reading right – it has not shown to sky and it was still able to receive a signal. German engineering teams always test to the maximum limits. šŸ˜‰

So if you are interested to track something, then just drop an email to harald.naumann (at) gsm-modem.de or give me a call (phone number at left upper corner). If you would like to develop an own vehicle tracking device, then please feel free to contact me too. My daily job since years is to consult developers to create new amazing wireless M2M products. Thank you in advance for any feedback.

4 Comments

Add a Comment
  1. Hello,

    I have a similar product on tracking, however can we relate so i can get to know how you can customize
    a good tracking device for my company.

    Thanks,

    Taiwo Aloba

  2. Taiwo, the PCBs listed here http://www.gsm-modem.de/M2M/m2m-componets/iot-avl-smart-home-aal-m2m-and-m2m2p-on-arduino/ could be a nice starting point. Next week a business friend will launch a GSM / GPS demo PCB by using the Python interpreter inside the GSM module. Take care on the voltage peeks in a car. More about here https://www.box.com/s/lakuesy1po/1/33471912

  3. Hello, i am interested in the all in one vehicle tracking device. The application is very simple in that it should forward the vehicle position on start up and in intervals of 30 seconds using GSM under a data plan. There is no need to store data or be on while the ignition switch is turned off. It will not be used as an anti-burglar gadget; hence concealing the same does not arise. Do you have any low cost solution in mind?

  4. Suresh, this device is bundled to a service. The web server behind is storing a lot of user data. Sorry, but I canĀ“t help with a low cost device in single quantities.
