GSM modem with watchdog

Industrial GSM modem with watchdog

GSM modem front view

GSM modem front

GSM modem front

  • RS232 on D-SUB9
  • Three status LED

GSM modem back view

GSM modem back

GSM modem back

GSM modem back
  • Antenna interface SMA/F
  • SIM card holder push / push
  • I/O interface with 6 pins (functions differs on the version of the GSM modem)
  • Power connector with 4 pins, 8 to 36 DC, inverse voltage protection
  • Back up battery (option)
  • Python interpreter
  • Operation as standard AT modem with watchdog and or battery
  • Operation as low cost PLC (programmable logic controller) replacement and program code on licence free Python language

GSM modem general

  • Temperature range: -25 to 70 degree Celsius
  • Enclosure: 57 x 87 x 27 (mm), aluminium
  • EN 55011 class A, EN 61000-6-1, IP20
  • Quadband GSM / GPRS 850/900/1800/1900 GPRS class 10
  • Embedded TCP/IP, UDP/IP, FTP, SMTP
  • SMS, data, fax, DTMF
  • Several types of hardware watchdog

GSM modem unique features

  • Reboot each 4 to 24 hours (by jumper)
  • Watch dog of the Python code by external micro controller ( by jumper)
  • Reboot of the GSM modem by command on RS232 ( by jumper)
  • Emergency battery inside (hardware option)
  • Secured against vibration by snap in connectors
  • Ready to use Python programs for different tasks
  • Free of charge tools to write and upload own Python programs
  • Local technical trainings for coding in Python (on request)
  • Test server to upload data logged or collected by GPRS (HTML, TCP/IP)

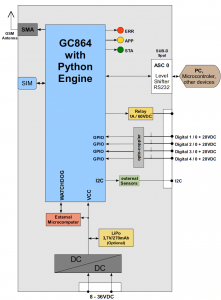

GSM modem block diagram

GSM modem with watchdog and battery

GSM modem with watchdog and battery

GSM modem family

GSM modem standard

  • Digital input with optical coupler 0 to 28  VDC =4
  • Output relay 1 A , 60 VDC
  • I2C bus for external extension= No
  • Back up battery = No

GSM modem with battery

  • Digital input with optical coupler 0 to 28 VDC =4
  • Output relay 1 A , 60 VDC
  • I2C bus for external extension= No
  • Back up battery = No

GSM modem with I2C bus and no battery

  • Digital input with optical coupler 0 to 28 VDC =2
  • Output relay 1 A , 60 VDC
  • I2C bus for external extension= Yes (1)
  • Back up battery = No

GSM modem with I2C bus and battery

  • Digital input with optical coupler 0 to 28 VDC =2
  • Output relay 1 A , 60 VDC
  • I2C bus for external extension= Yes (1)
  • Back up battery = Yes

GSM modem application examples

Burglar alarm, monitoring of server room, standard AT modem with watchdog, operating hour timer of machines, remote control, remote monitoring, fault detector, data logger … and a lot of more

If you have interest in this GSM modem made by a business friend of mine then just drop an email to harald.naumann (at) gsm-modem.de or use the form to get further details.
