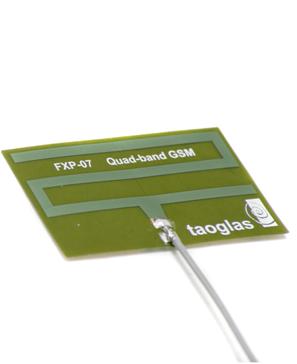

Integrated 3G antenna on flexible PCB

This integrated 3G antenna that covers GSM 850 900, 1800, 1900 and the UMTS 2100 band.

The flexible PCB helps to fit in to tiny applications like small tracking devices , POS, metering or any other telemetry application.

Technical data of this integrated 3G antenna

• Gen. Frequency: 824~960 MHz and 1710~2170 MHz
• Gain: 0 dBi
• VSWR: < 2.5
• Efficiency: 29-82% **
• Size: 42x24x0.1 (mm)
  ** Original  specification tested on 100 x 40 mm ground plane
