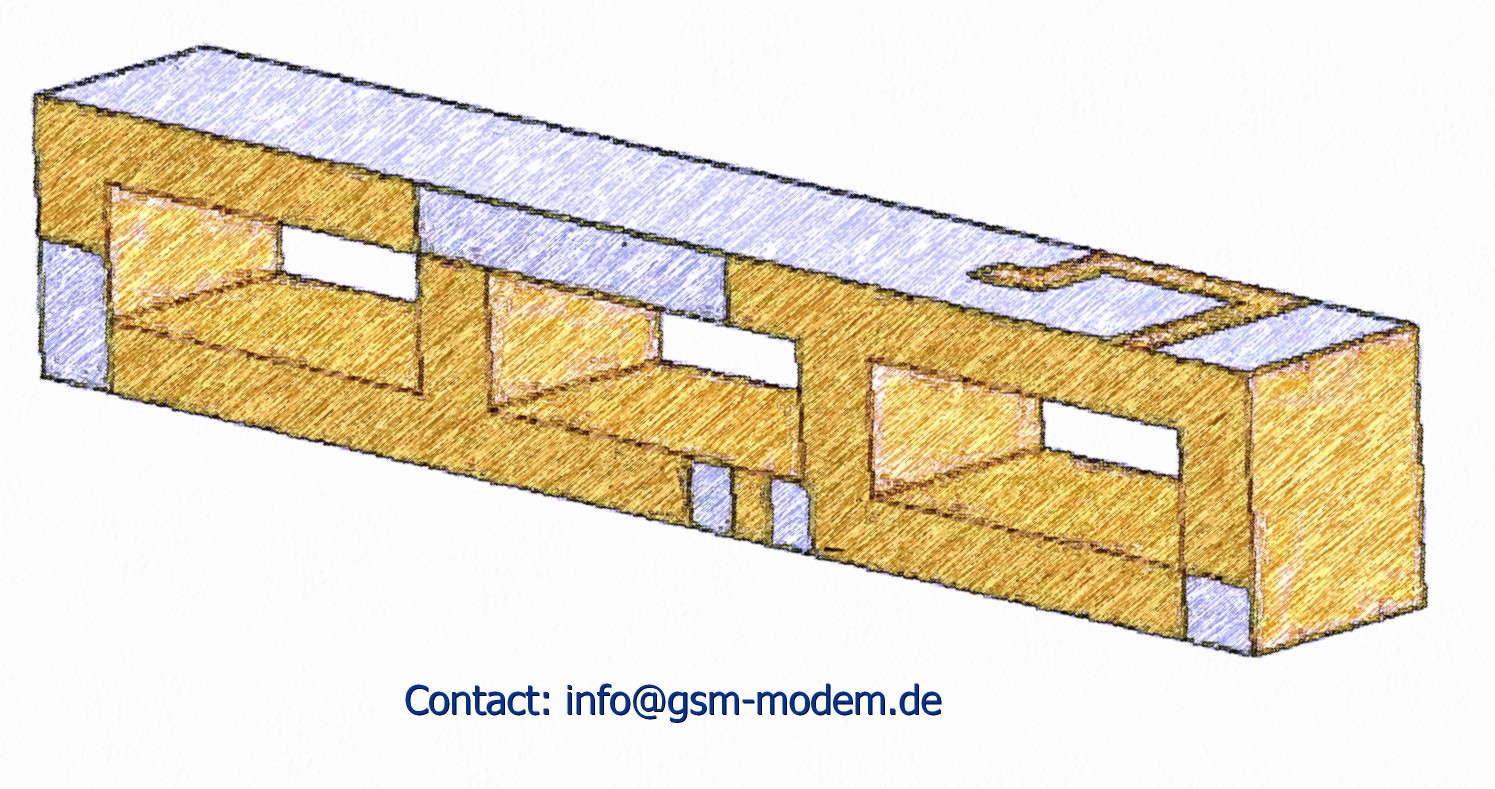

GSM PIFA Antenna

This GSM PIFA antenna that covers all GSM bands 850, 900, 1800, 1900 and the UMTS 2100 band.

Ultra small size designed for tiny applications small tracking devices (people, animals, assets), PDA, digital camera, mobile phones, GSM / GPS watch

GSM PIFA antenna details

• Supported band: GSM 850,900,1800,1900, UMTS 2100
• Frequency  (MHz): 824~960 1710~2170
• Impedance: 50 Ω
• Dimensions (mm): Ultra small 35 x 6 x 5
• Ground plane used (mm): 90 x 40
• VSWR: 3 max.
• Band, frequency, antenna efficiency
• GSM 850/ 900 , 824 ~ 960 MHz, 61%~69%
• GSM 1800/1900, 1710 ~ 1990 MHz,  52%~63%
• UMTS 2100, 1920 ~ 2170 MHz = 51%~67%
• Already passed American PTCRB approval
