GPS tracker

GPS tracker based on Python engine

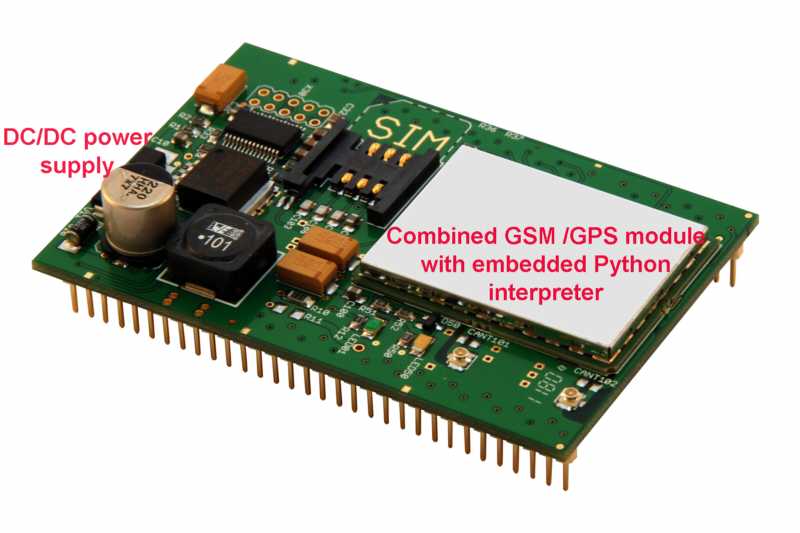

This picture shows a breadboard which  contains a complete  GPS tracker on a surface of just 56 mm x 84 mm.  A Quad-band GPRS module and SiRF3 GPS module are also on board,  as well as interfaces for RS232.

The heart of the GPS tracker is a licence free Python interpreter, responsible  for control of GSM module and GPS module. The combined GSM / GPS module are also available for purchase separately. Despite  its small surface area - roughly the size of a matchbox its 64-pin  socket provides a wide array of connectivity options.

This new platform is ideally suited to the expansion of self-sufficient positioning and monitoring systems, which are capable of much more than merely transferring data due to the embedded Python interpreter. Coupled with  environmental sensors, complex pattern recognition applications, for example, can be executed directly on the board. As the geo-coordinates are also transferred wireless, the board is predestined for mobile use.

Technical data of GPS tracker

• Controller with periphery
• Shared CPU with Python interpreter
• RAM 1.2 MB for the Python engine usage
• Data Flash (Non volatile) 1.9MB for user Python scripts
• GPI0 Pins , AD / DA converter
• 1 COM port, I2C, SPI
• Debugging Interface
• Charging circuit for LIPO Battery
• DC/DC Power Supply, input voltage 6 to 32V
• Radio modules
• Quad-Band GSM / GPRS Module incl. SIM card holder
• GPS module based on SiRF 3/LP

Content of the GPS tracker evaluation kit

Main board, adapter board with wireless modules (GSM and GPS) and micro controller, software development environment, cable RS232 to USB , cable CMOS to USB, cable D-Sub 9 Pin RS232, GSM-Helix-antenna, external combined GSM / GPS antenna, GPS patch antenna, GSM-board-antenna , two  integrated GSM antennas, two coaxial cable, microphones, loudspeaker, LiPo battery 1350 mAh, source code in Python for  tracking device, access to User forum, access to free of charge tracking platforms
